Corner Clamped Glass

This elegant structural glazing system supports glass panels at their corners.

LEARN

What Is A CCG System?

Novum’s Corner Clamped Glass System is used primarily for vertical or sloped glazing, where flat glazing panels are supported only at their corners. It has a contemporary technology design aesthetic with minimal glass joint widths, which provides nominal interruption of glass surface for maximum transparency with an almost fully flush glazed aesthetic.

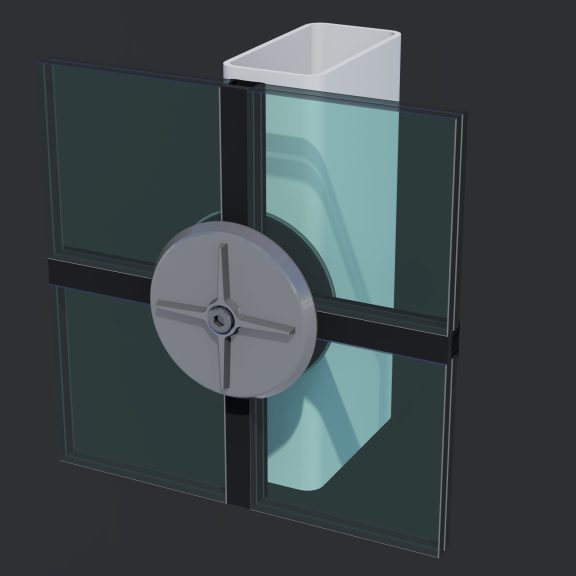

Corner clamped system

Why Choose Corner Clamped Glass

The system is very efficient where a squarer panel geometry is required or when making a segmented curve in plan with smaller panels.

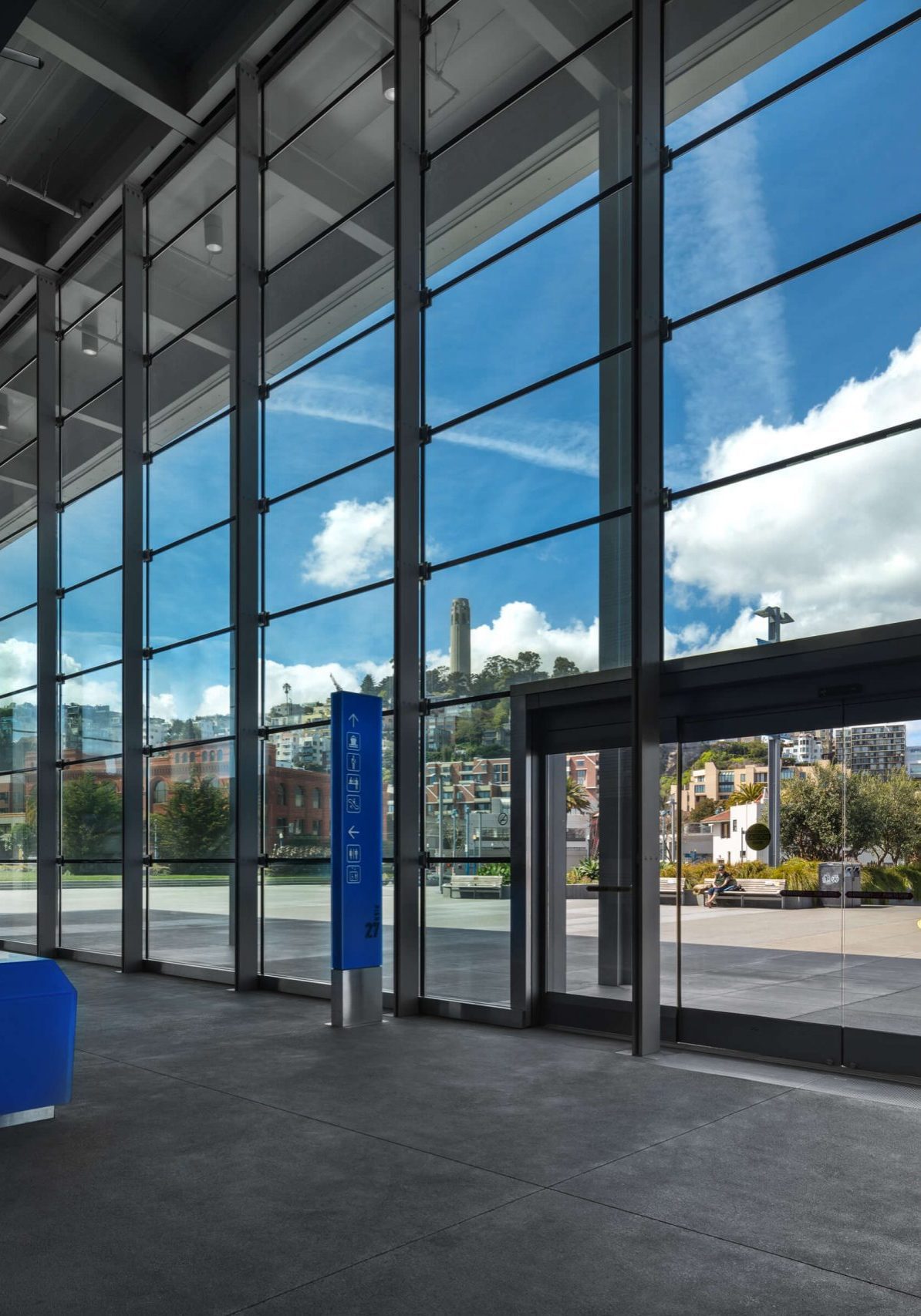

Building using edge clamped glass
Algorithm icon

CUSTOM IN APPLICATION

As with all our glazing systems, Novum fully designs the panels and fittings and the crucial integration with support structure to accommodate all movements and loads. The minimal corner support maximizes individual panel transparency, but structurally means that glass panel sizes are limited to prevent prohibitively heavy makeups. The system requires the clamp be external to the outer glass surface.

Checklist icon

FACTORY FINISHED

Glass can be monolithic, laminated, or insulated of varied thicknesses. Many glass coatings and frit patterns are available. The standard metal finish is cast stainless electropolished, but options include bead blasted stainless steel or aluminum in varied colors.

Squares icon

ASSEMBLY

Clamped fittings are easily installed and adaptable for modest angular changes in surface planes. Applications include facades where the clamp is designed to take both dead loads and wind loads. Glass panels are typically rectangular and the façade might be a cable wall, suspended girt, or architectural steelwork.

Corner Clamped Glass In 3D

The project-based animation below showcases the integration of Novum Systems at work.

Corner Clamped Glass

Features & Specifications

Some Of Our Projects

Novum has expertly fabricated, furnished, and installed hundreds of projects utilizing corner clamps around the world.
