What Is A KK System?
A classic German spaceframe technology that was pioneered by Dr. Mengeringhausen during the 1940’s and since has been used on tens of thousands of projects worldwide. Its timeless design of pin ended lattice work with minimally sized connections and free geometry allow for spans up to 300’ (100m).
Why Choose Kugel Knoten
Novum’s KK-System’s ingenious design flexibility enables virtually any geometry.
CUSTOM IN APPLICATION
Novum KK-System is typically used for double or triple layer grid structures for roofs, atriums, and canopies. It can also achieve single layer capability with correct boundaries, lightweight structures for long spans, complex smaller spaces, structures with irregular support layout which need two-way and three-way truss action, stepped and folded roofs and walls with seamless structural transitions between intersecting planes, telescopes, and any application requiring a stiff lightweight solution. Nodes are custom machined using CNC equipment for tight tolerance and full geometric control.
FACTORY FINISHED
The finish combination of galvanizing and paint as a duplex system provides excellent corrosion protection. Galvanized mild steel is standard, but stainless steel is available. Standard member finish is hot dip galvanized inside and out after fabrication. Galvanizing is followed by a 2-coat prime and liquid polyurethane. Additional finish options include thermoset polyester powder coat over hot dip galvanizing or brushed stainless steel.
System Attributes
Geometries are determined by applied loading or cladding type and the component sizes are optimized to be lightweight with high transparency. Secondary steelwork can be used as the interface of structure and cladding to allow integration of traditional claddings such as metal roofs, opaque, or translucent panel systems.

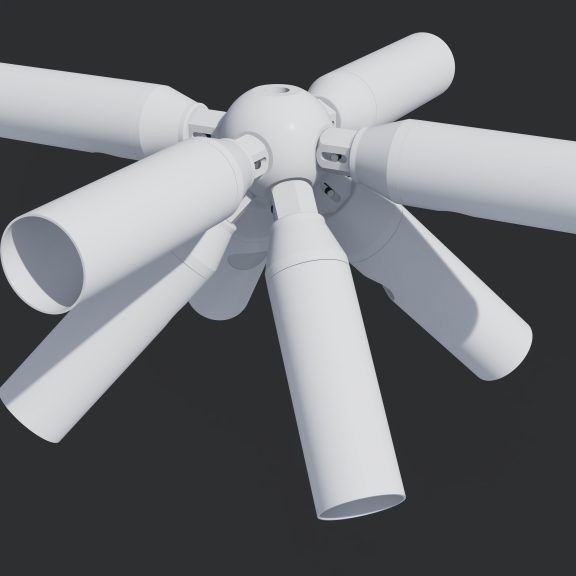

Kugel Knoten in 3D
The project-based animation below showcases the integration of Novum Systems at work.
Kugel Knoten
Features & Specifications

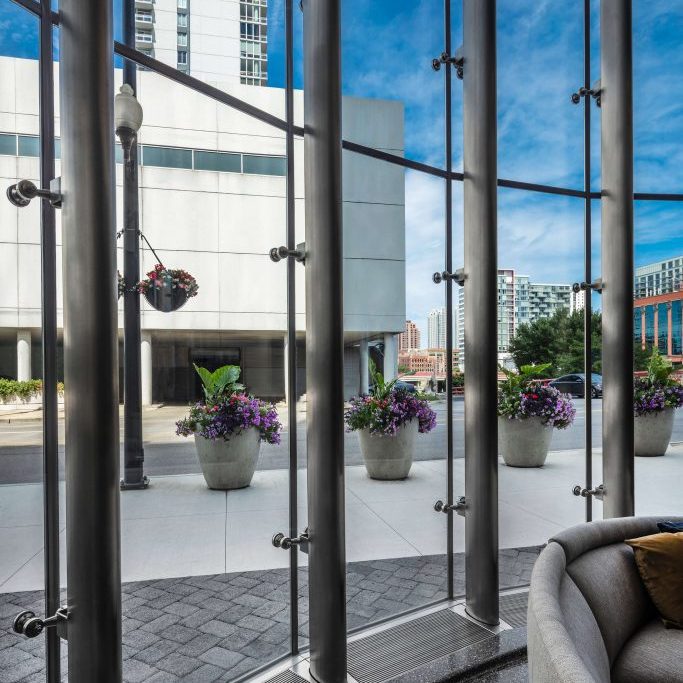

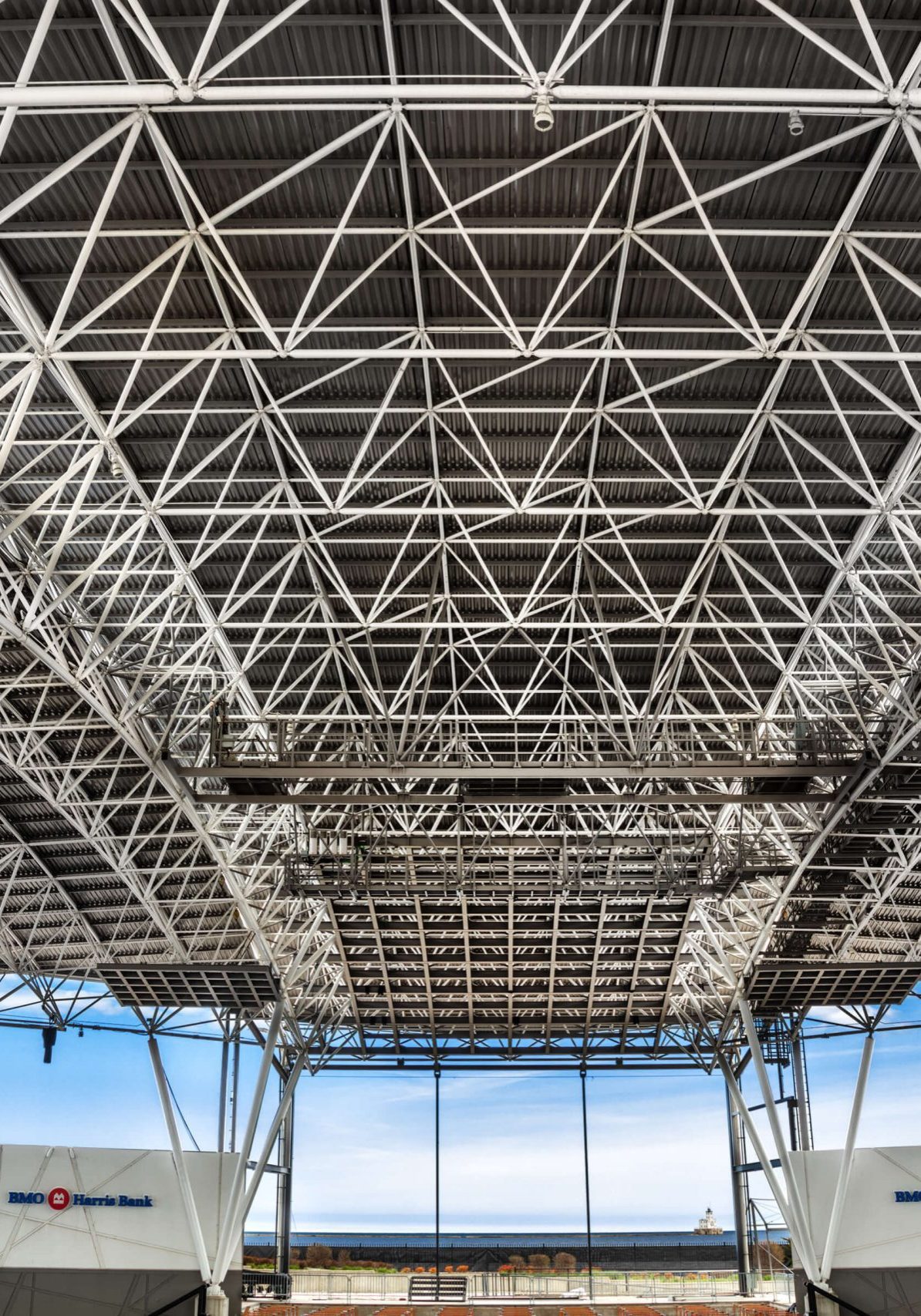

Some Of Our Projects
The KK-System was developed in the study of nature and geometric forms. Our team continues to celebrate the heritage of Dr. Mengeringhausen and have constructed hundreds of KK projects around the world.
