Old National Bank

Madison, Wisconsin, USA

About

This Work

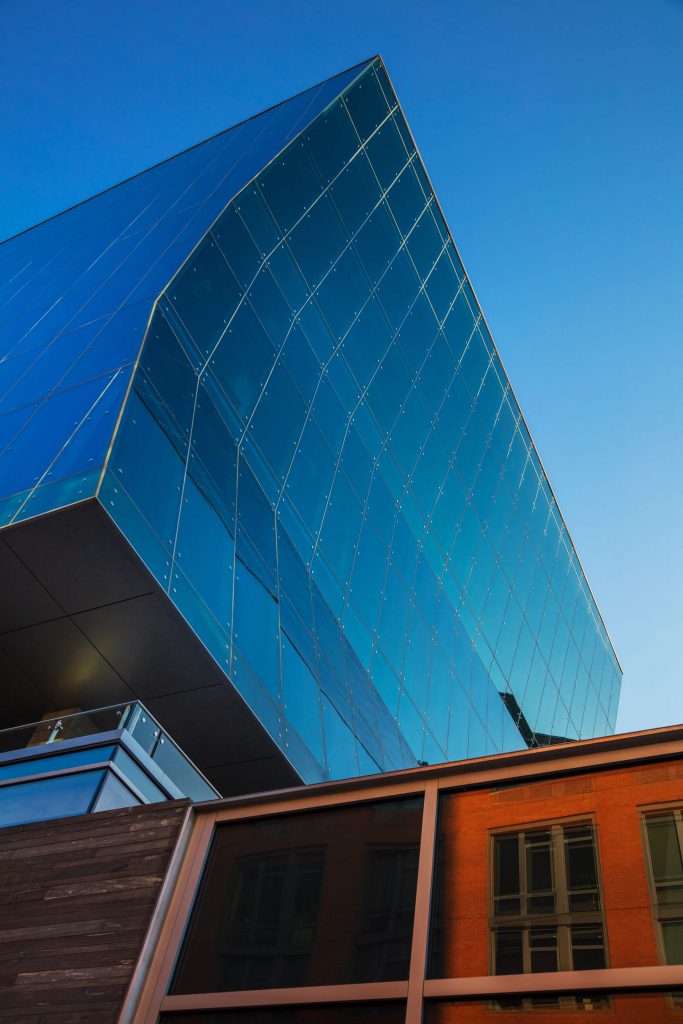

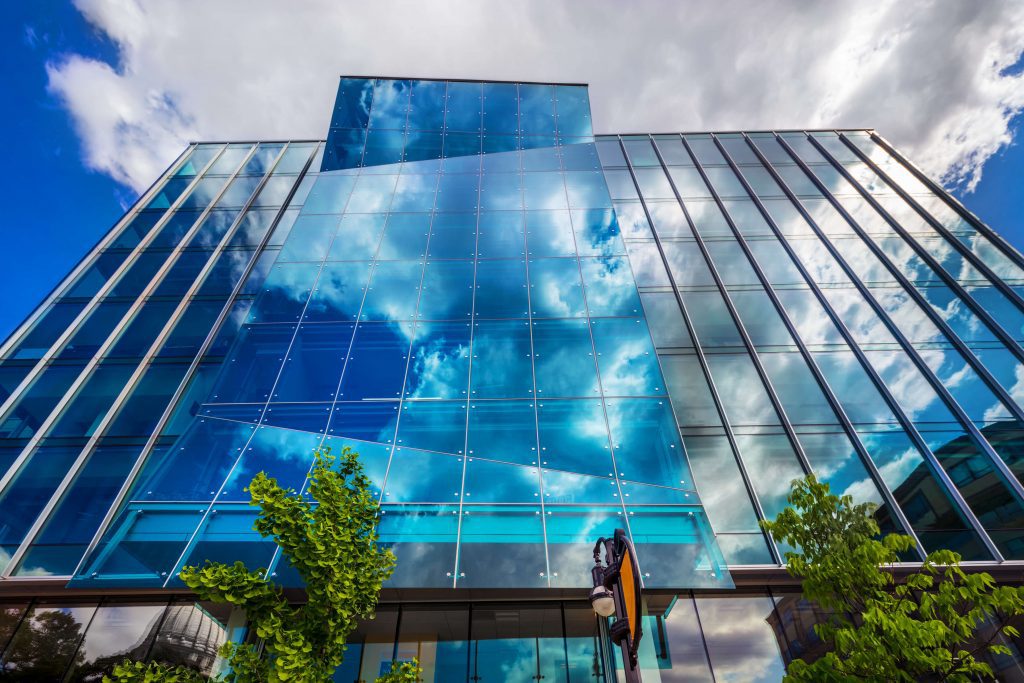

Novum engineered, fabricated and constructed two new façades for the existing building on the Capitol Square in Madison, Wisconsin. The goal was to create a dynamic façade that appears to fold in elevation. This unique geometry was achieved with the combination of custom vertical steel mullions and point supported glass. The folded elevations are supported by galvanized and painted HSS 6×2 vertical mullions spaced typically every 5’-4”. The glazing is an insulated makeup that consists of a laminated exterior lite and a monolithic interior lite. A low-e was used to help with thermal performance. To pay homage to the lakes to the north and south of the building, the lite on the outside of the glazing makeup is tinted blue.

Old National Bank

Project Specifications

Size icon

SIZE

16,800 sq ft 1,560 sq m
gear icon

SYSTEMS USED

Architecturally Exposed Steel
Point Supported Glass

Compass icon

ARCHITECT

Valerio Dewalt Train Associates, Inc.
