Park District

Dallas, Texas, USA

About

This Work

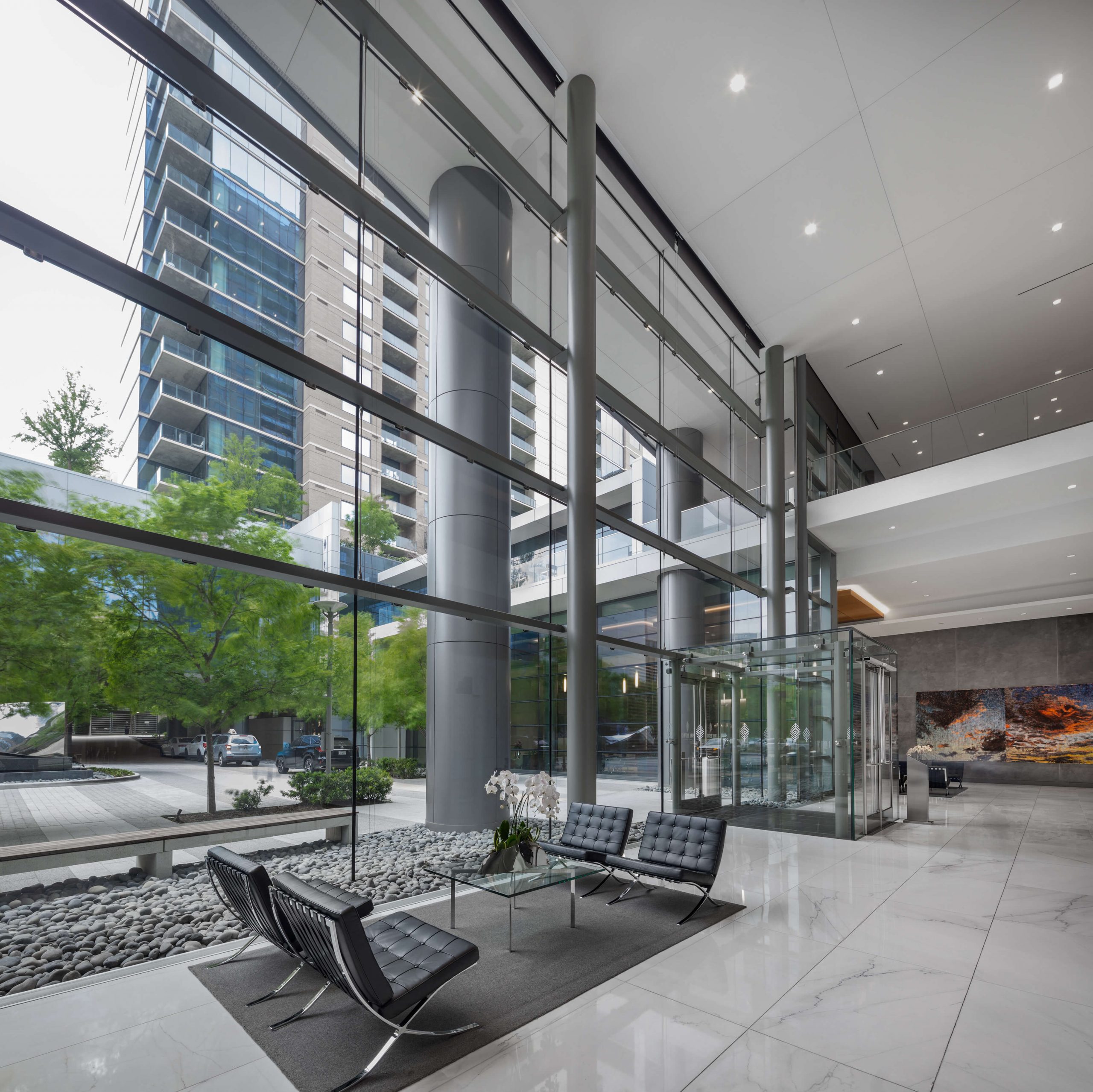

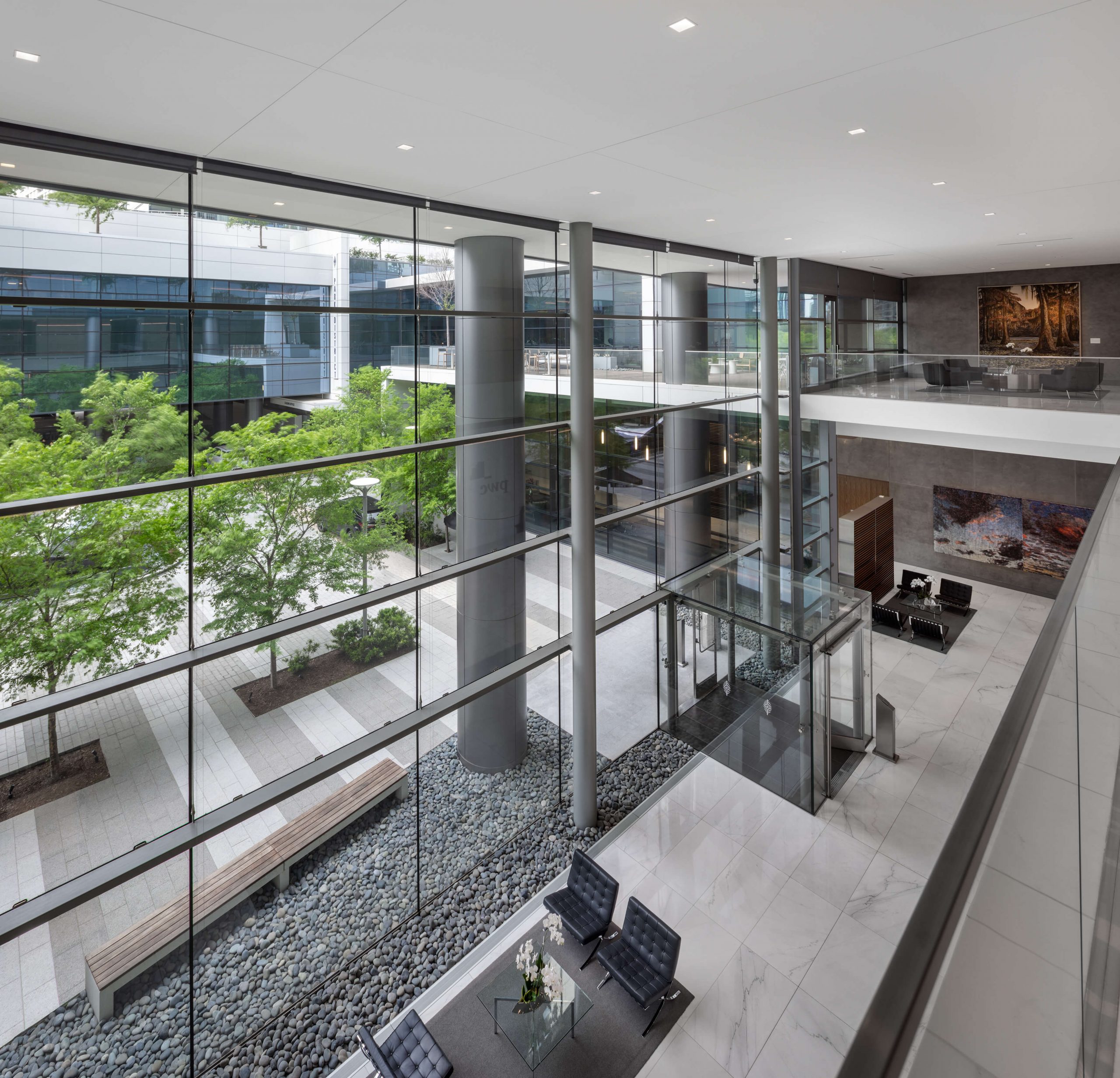

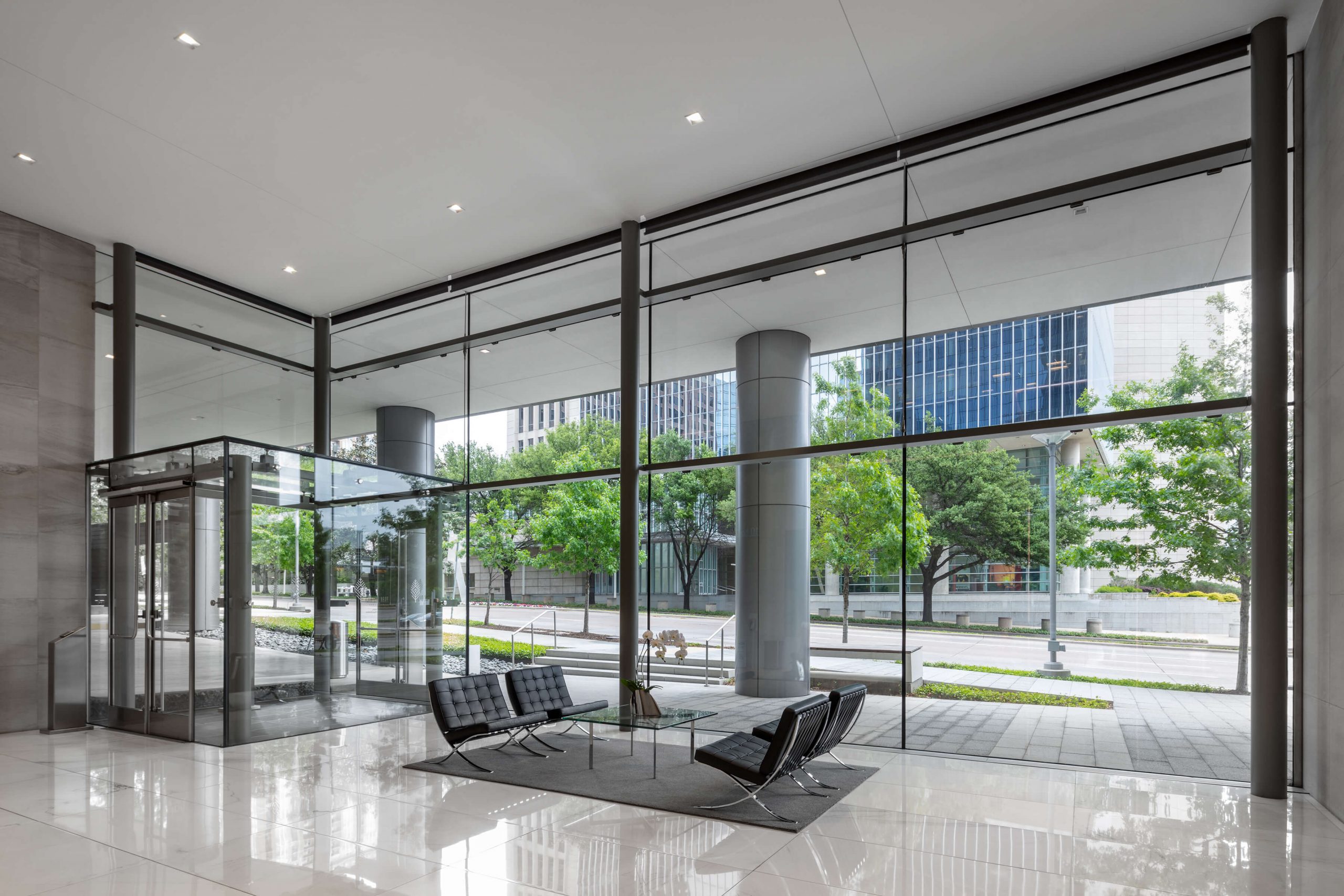

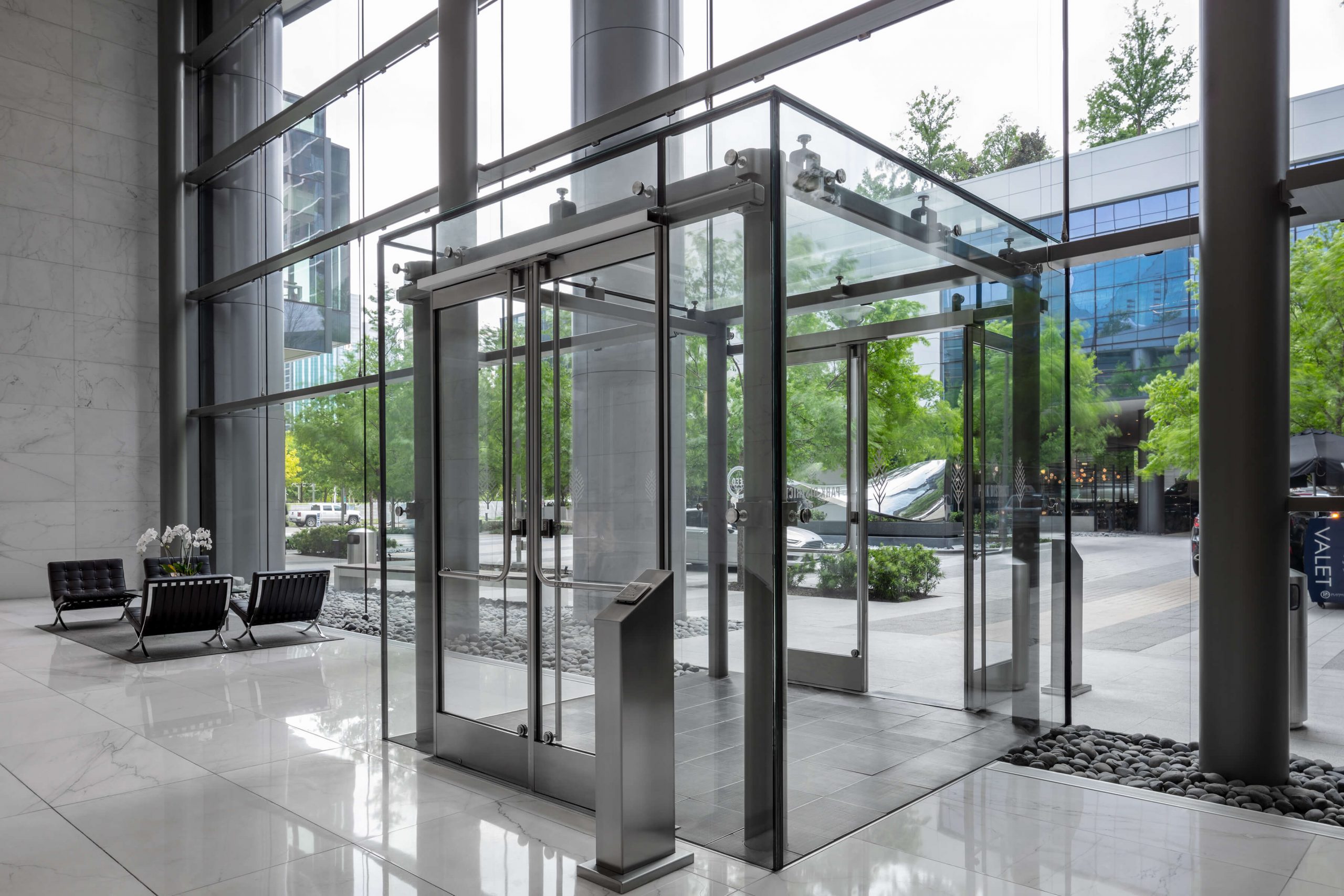

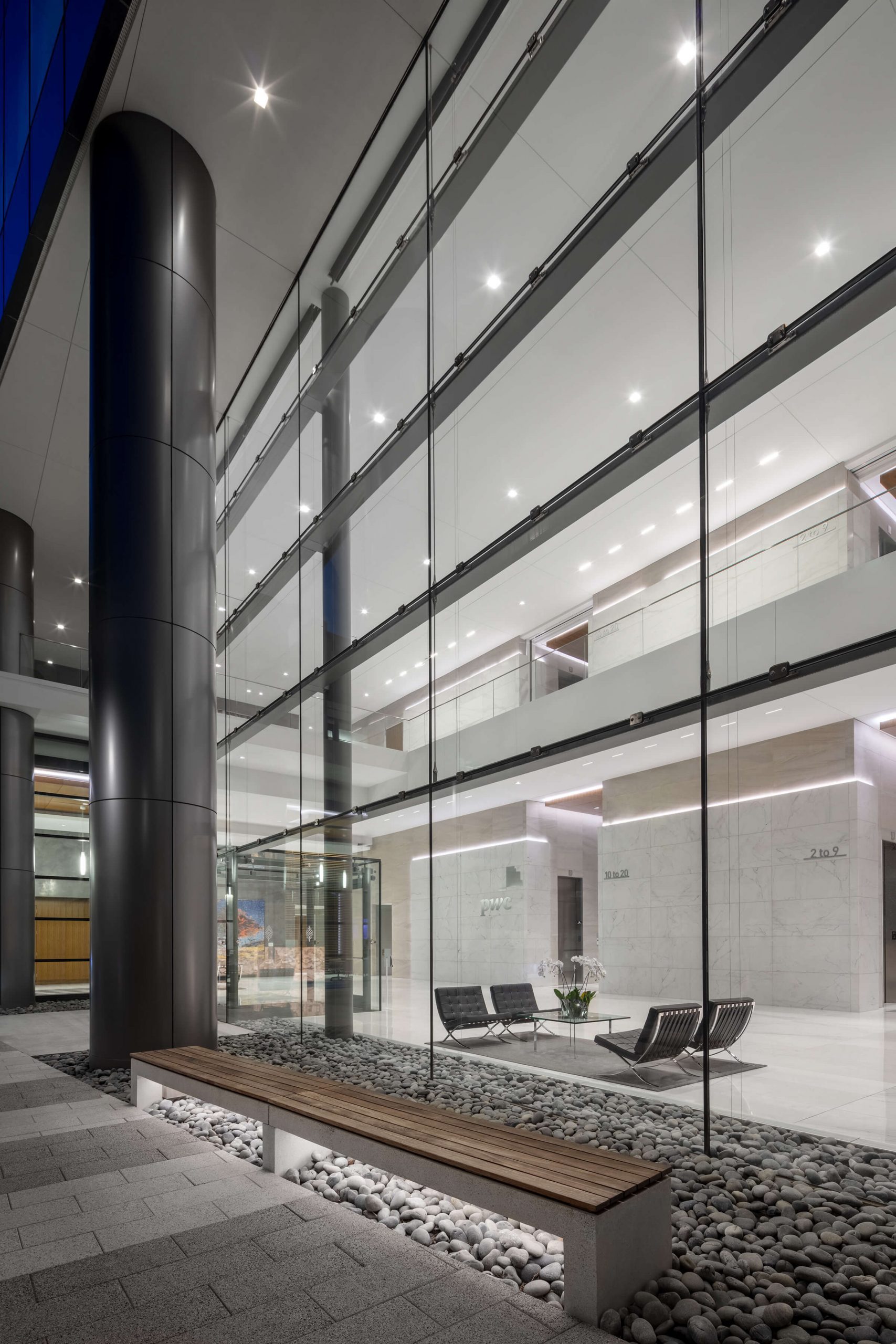

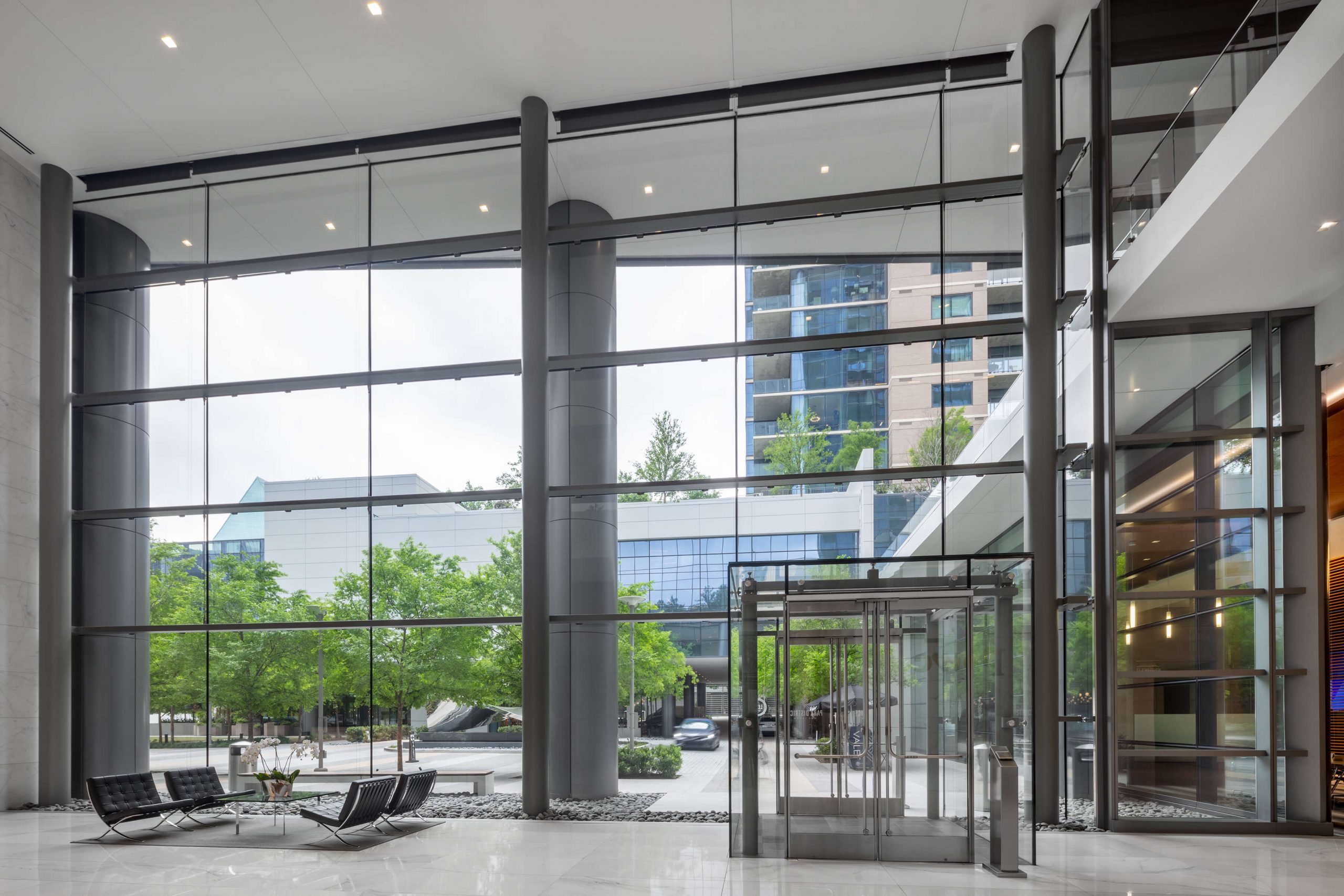

Novum was contracted to engineer, furnish, and install glass and steel for two (2) Façades at the Park District Building in Dallas Texas.  Both Façades are L-shaped in plan and include a Vestibule.  The West Façade measures approximately 71’-2” long x 35’-3” tall x 2’-6” deep.  The East Façade measures approximately 40’-0” long x 19’-3” tall x 8’-11” deep.  The Vestibules measure approximately 10’-0” wide x 10’-0” deep x 10’-0” tall.  For the Façades, glazing is supported off of suspended steel girts via Novum’s Edge Clamped Glass System (ECG-System).  For the Vestibules, glazing is supported off a steel structure via Novum’s Point Supported Glass System (PSG-System). This project was truly one that was filled with excitement and intrigue for all teams involved!

Novum PD 5808 CNP

Project Specifications

Size icon

SIZE

4,250 sq ft / 395 sq m
gear icon

SYSTEMS USED

Architecturally Exposed Steel

Tension Rod

Edge Clamped Glass

Point Supported Glass

Compass icon

ARCHITECT

HKS
Blueprint icon

GENERAL CONTRATOR

Balfour Beatty Construction
