Point Supported Glass

Novum’s most versatile structural glazing system.

LEARN

What Is A PSG System?

The PSG-System provides the ability to generate high transparency with minimal support design and has been hugely instrumental in the development of highly technical facades. Novum’s fully tested system has been successful in thousands of projects including in high snow, seismic, and hurricane zones.

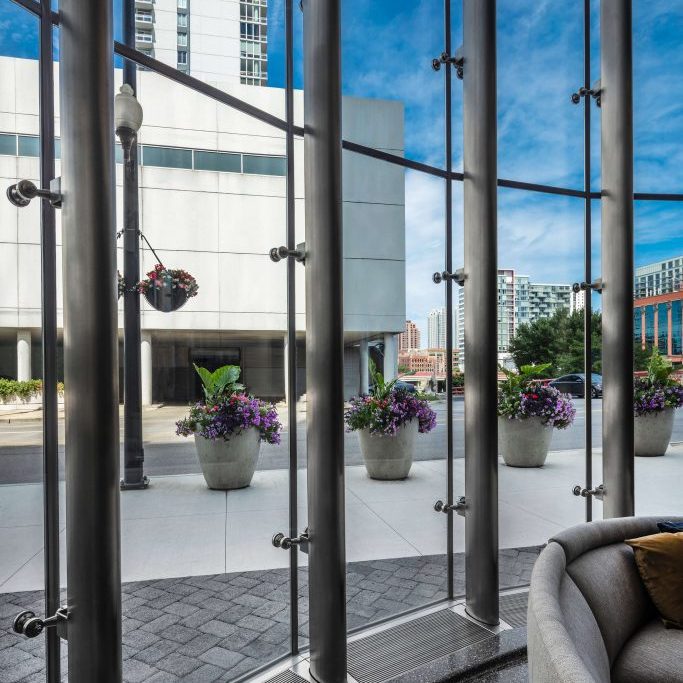

Point supported system

Why Choose Point Supported Glass

Rotational point supports are optimally located by our engineers to maximize glass size, optimize glass structural performance, and minimize structure. This system is ideal where overhead glass is to be suspended below the structure.

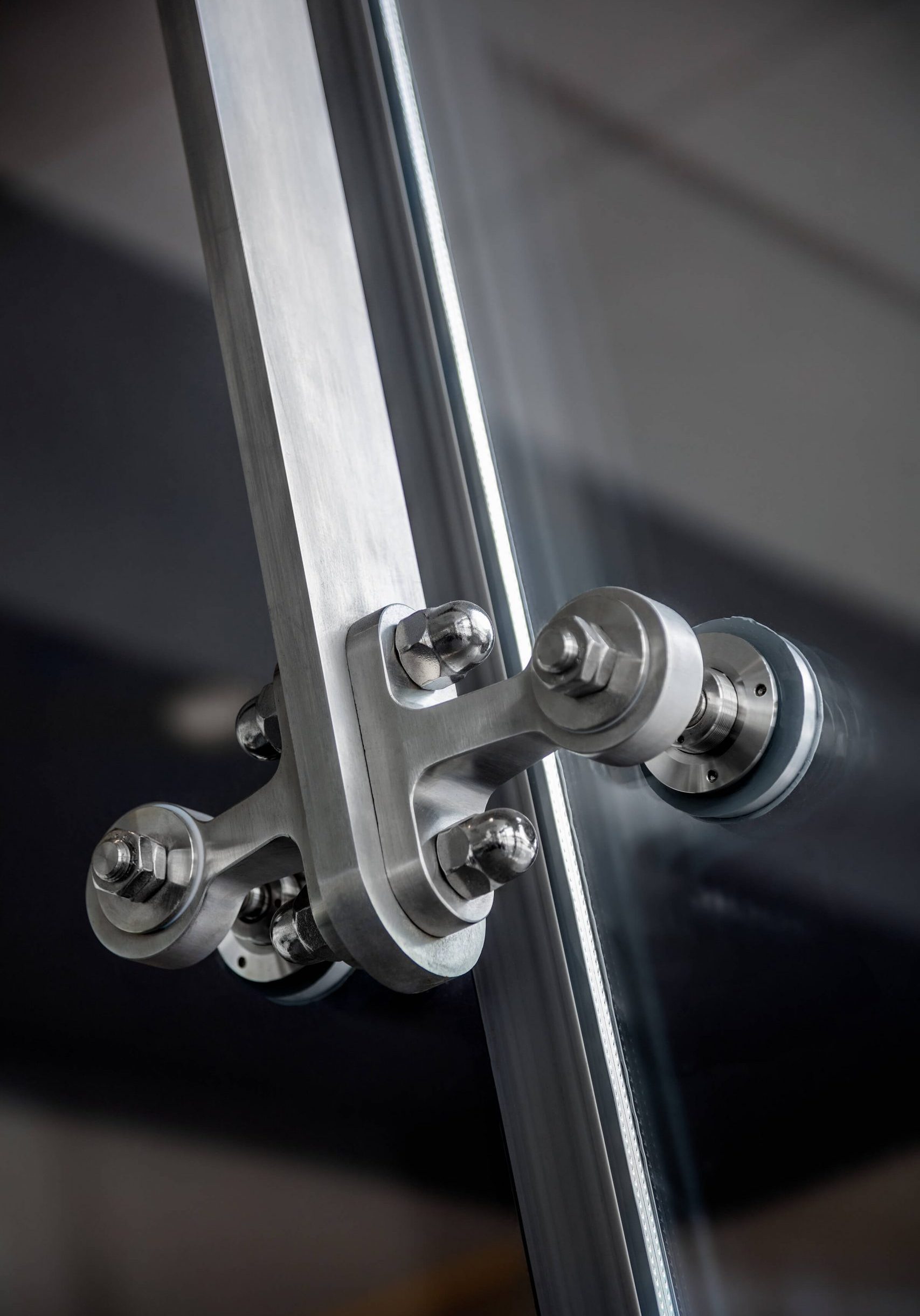

Closeup of point supported glass
Algorithm icon

CUSTOM IN APPLICATION

Extra-large panel sizes and cantilevered free glass edges are readily achieved. Standardized and tested A316L stainless-steel fixing bolts for glass of all thicknesses and buildups are typically available from our warehouses. They can be countersunk flush or button type with the head above the glass surface. Glass can be oriented in any plane.

Checklist icon

FACTORY FINISHED

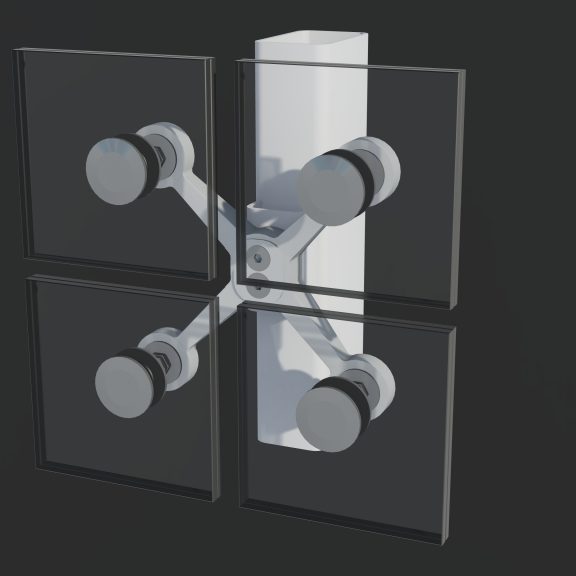

The fixing bolts fasten to a choice of cast or plate spider styles. Novum has a wide range of readily available spider designs as well as the capability to custom cast or fabricate. Spider finishes can be brushed, polished or bead blasted stainless steel to plated and painted or powder coated mild steel.

Squares icon

ASSEMBLY

Our product line was developed so that spiders can weld or mechanically fasten to all six of our structural products or clamp to cables.

Point Supported Glass In 3D

The project-based animation below showcases the integration of Novum Systems at work.

Point Supported Glass

Features & Specifications

Some Of Our Projects

Point Supported Glass applications are unlimited – facades, roofs, canopies, sculptures, handrails, glass fins, and many more.
